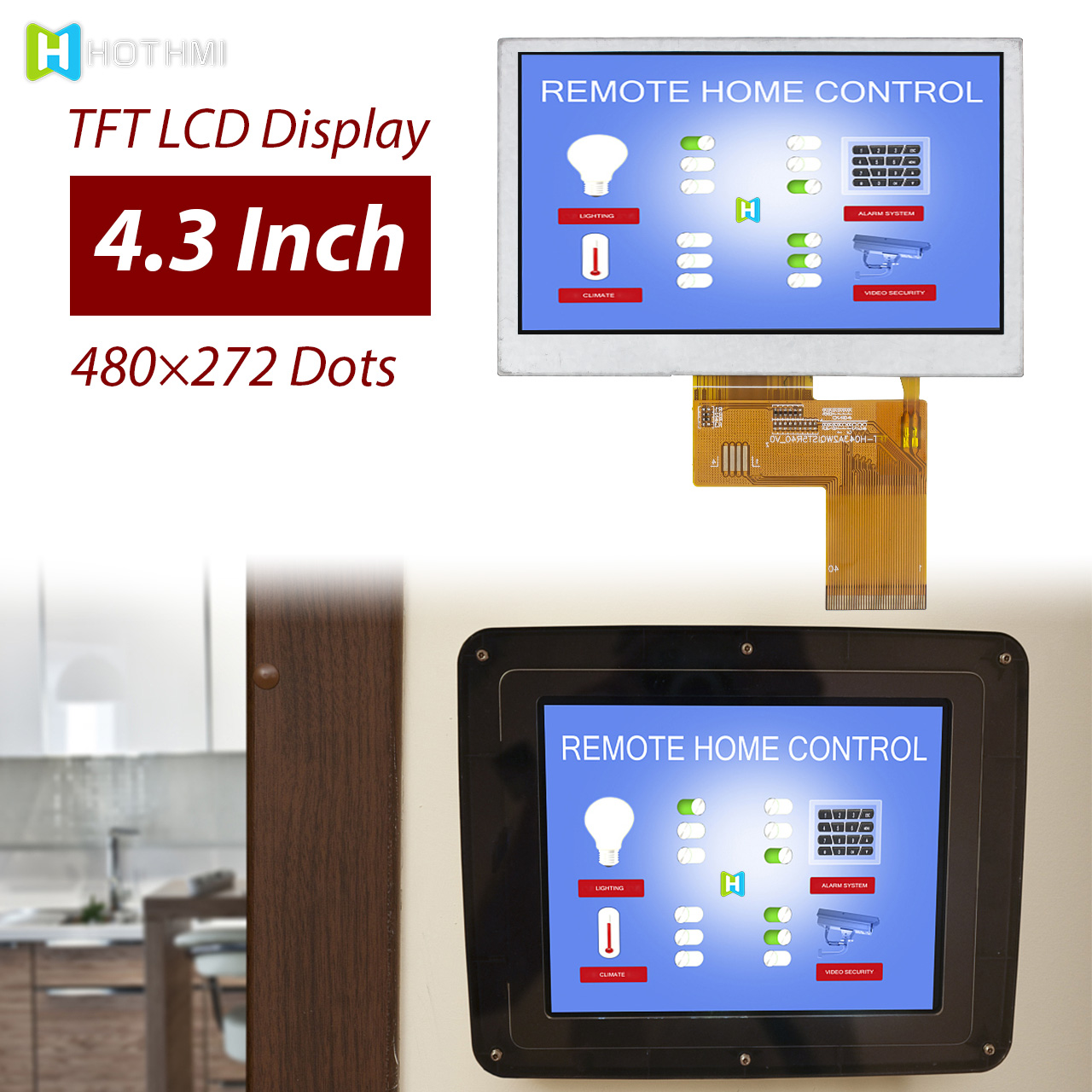

4.3" 480x272 IPS TFT LCD Display | SC7283 Controller High Brightness

4.3" 480x272 IPS TFT LCD Display | SC7283 Controller High Brightness

▶ Model: TFT-H043A2WQISTKN40

▶ Type: 4.3" TFT LCD Display
▶ Display pixels: 480x272
▶ Dimensions (mm): 105.42x 67.07x3.0
▶ Display inches: 4.3"
▶ Effective size (mm): 95.04x53.86
▶ Application: STM32/RK series
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 1200cd/m2
▶ Pin: FPC-40PIN
▶ Interface: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: SC7283

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

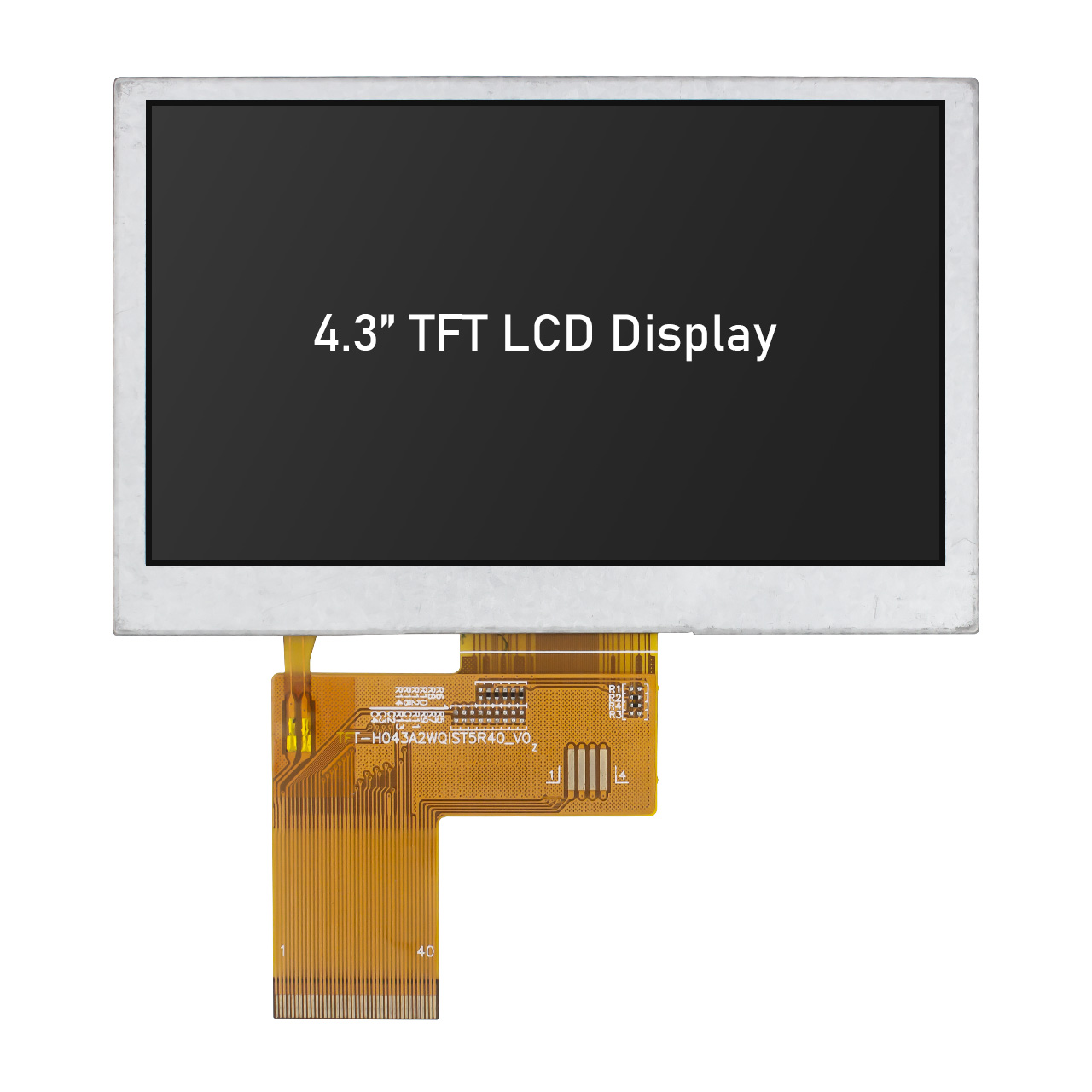

4.3" TFT LCD Display | 480x272 IPS RGB TFT LCD Display | SC7283 Controller

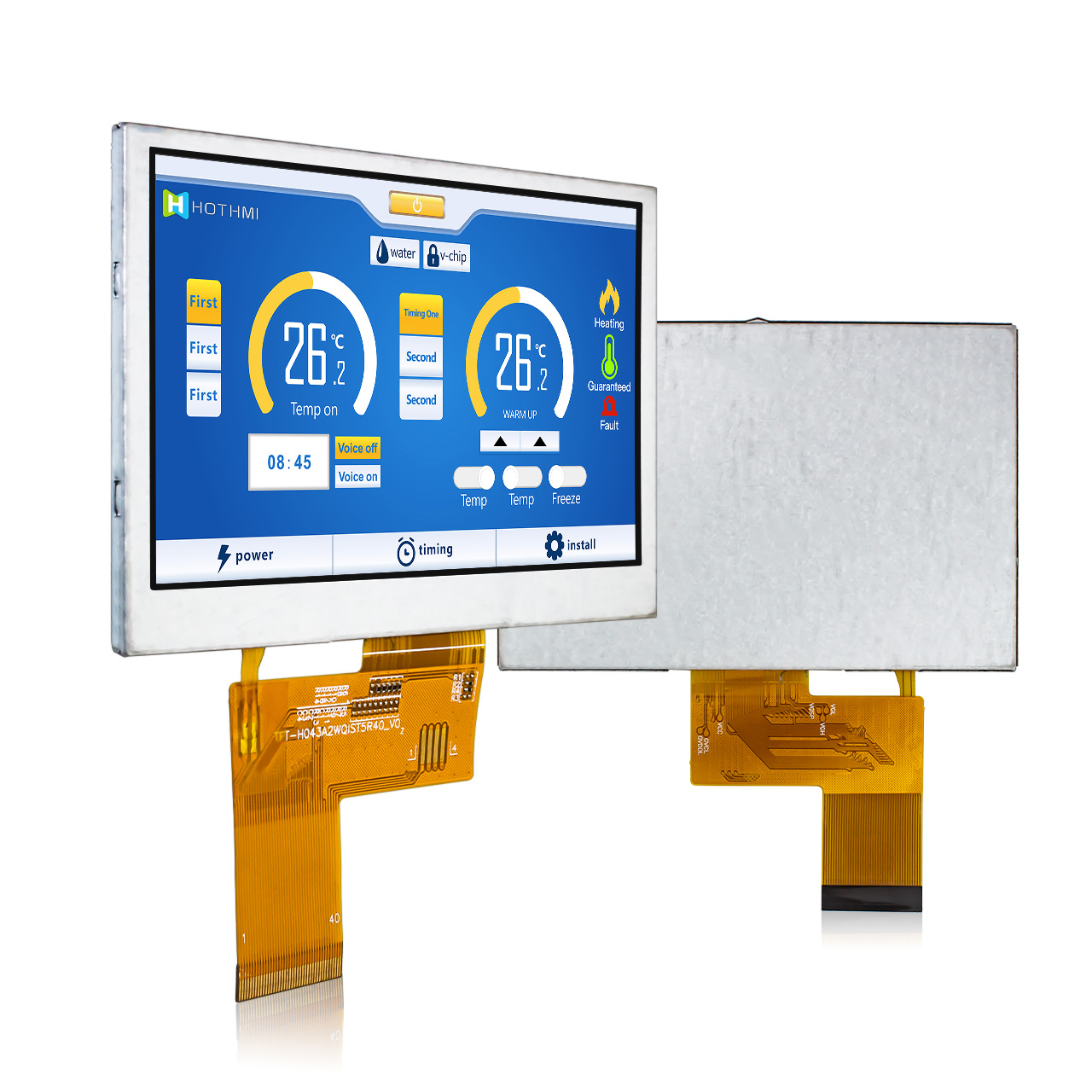

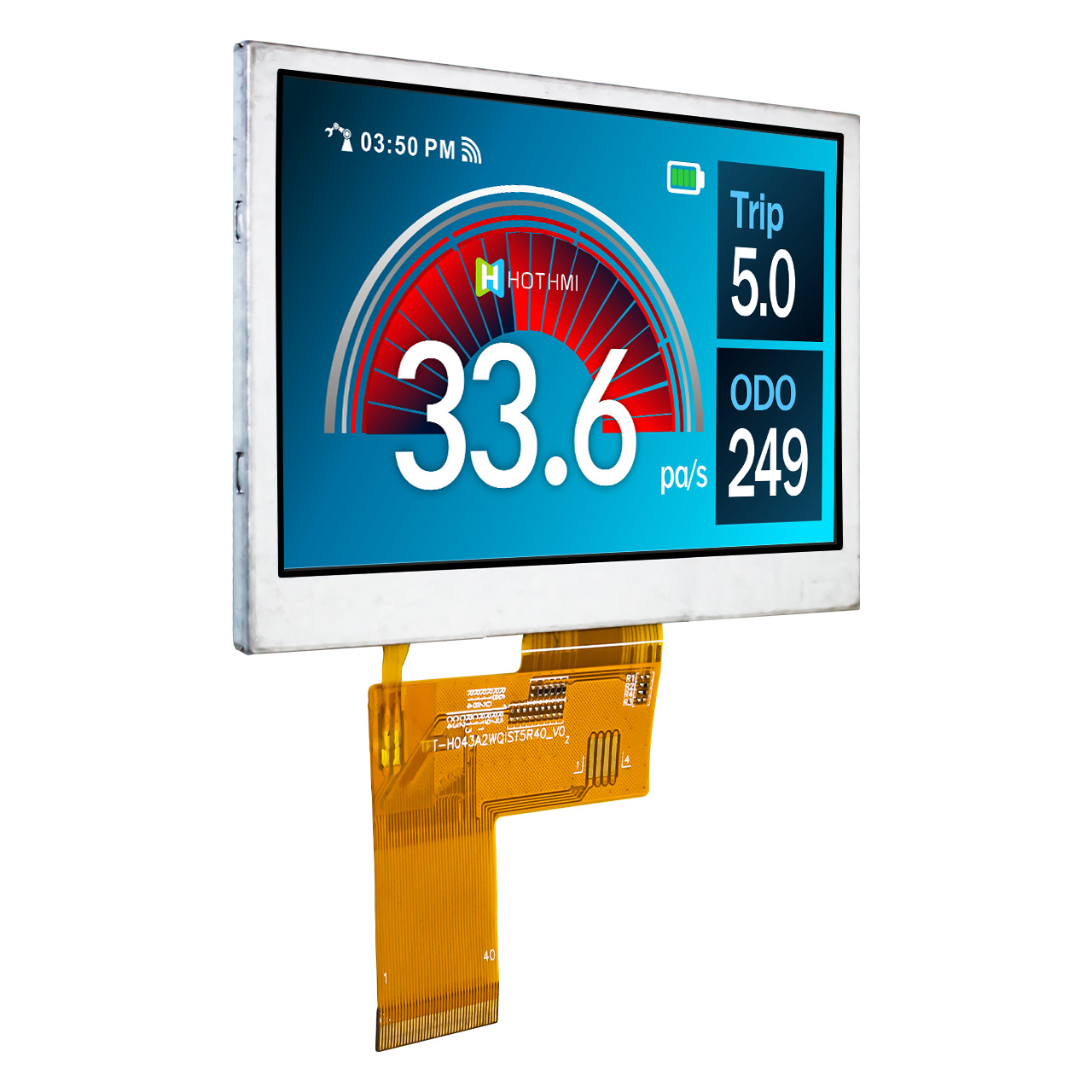

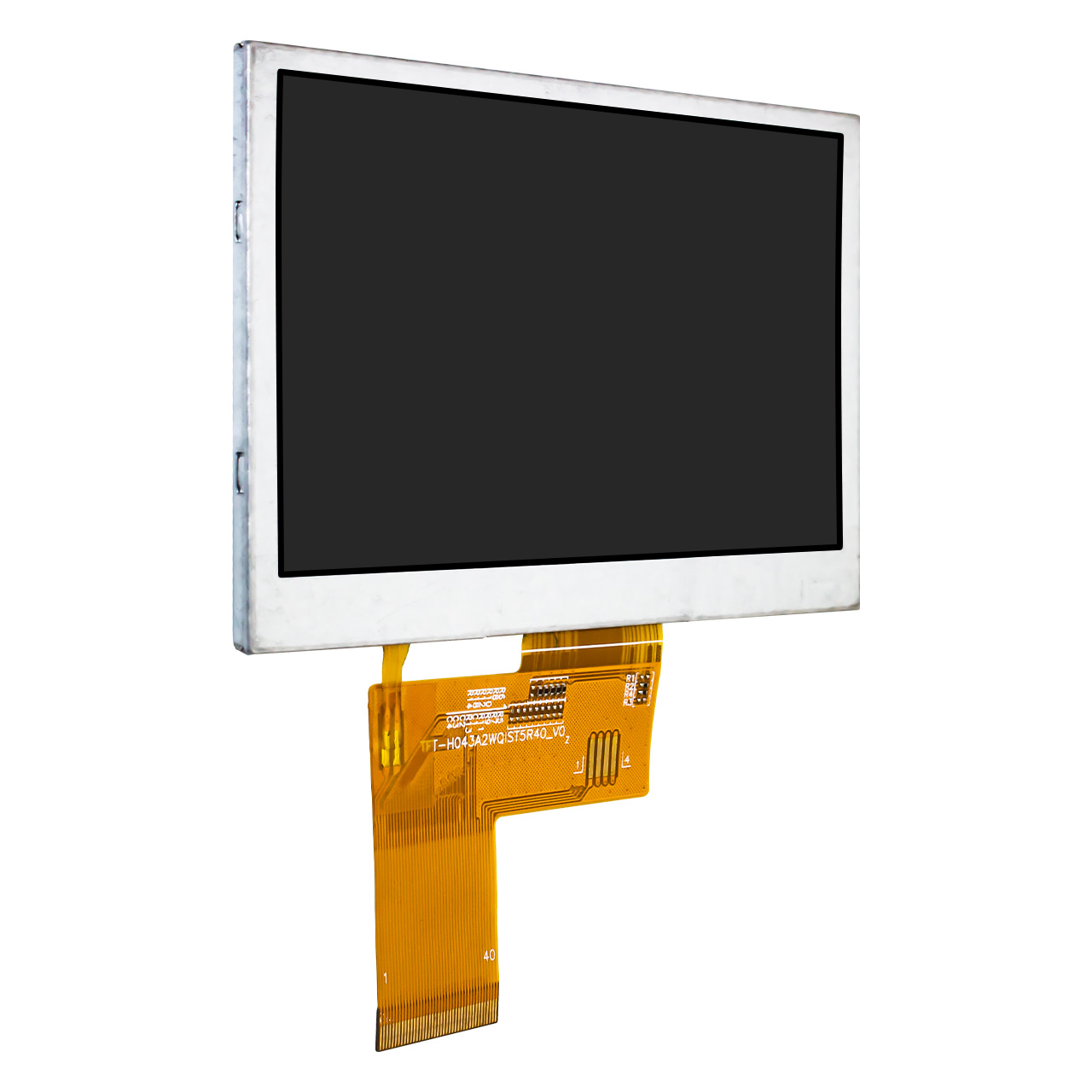

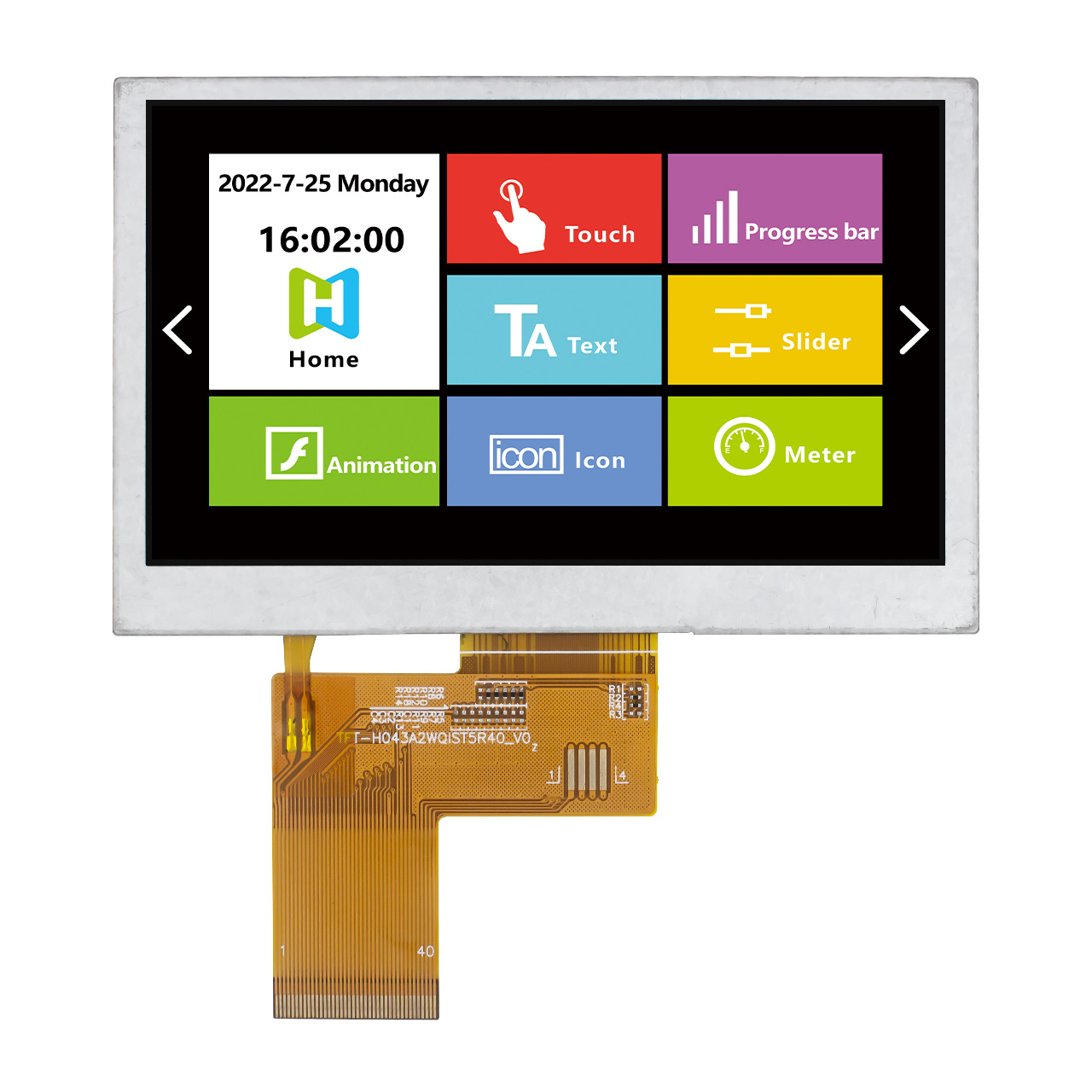

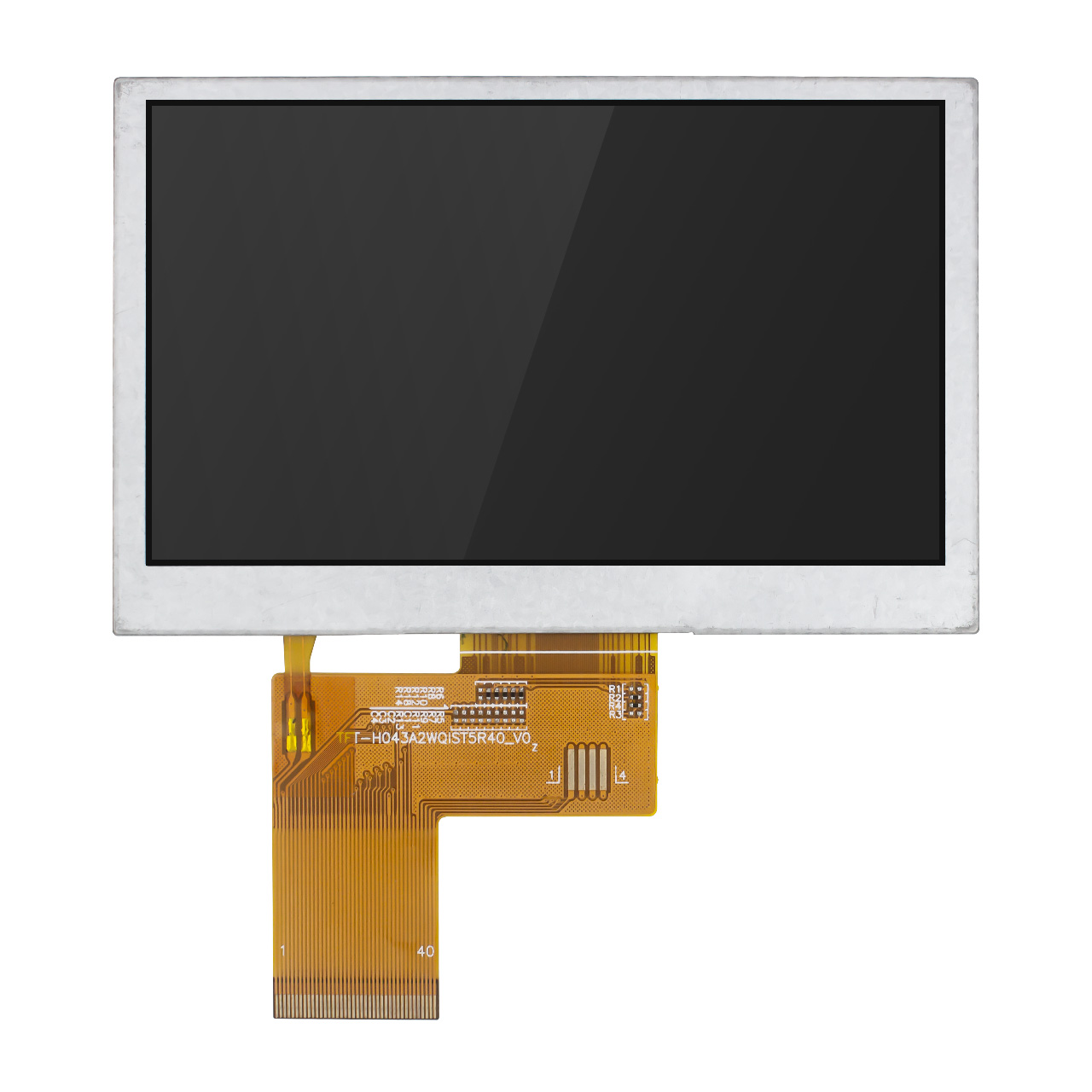

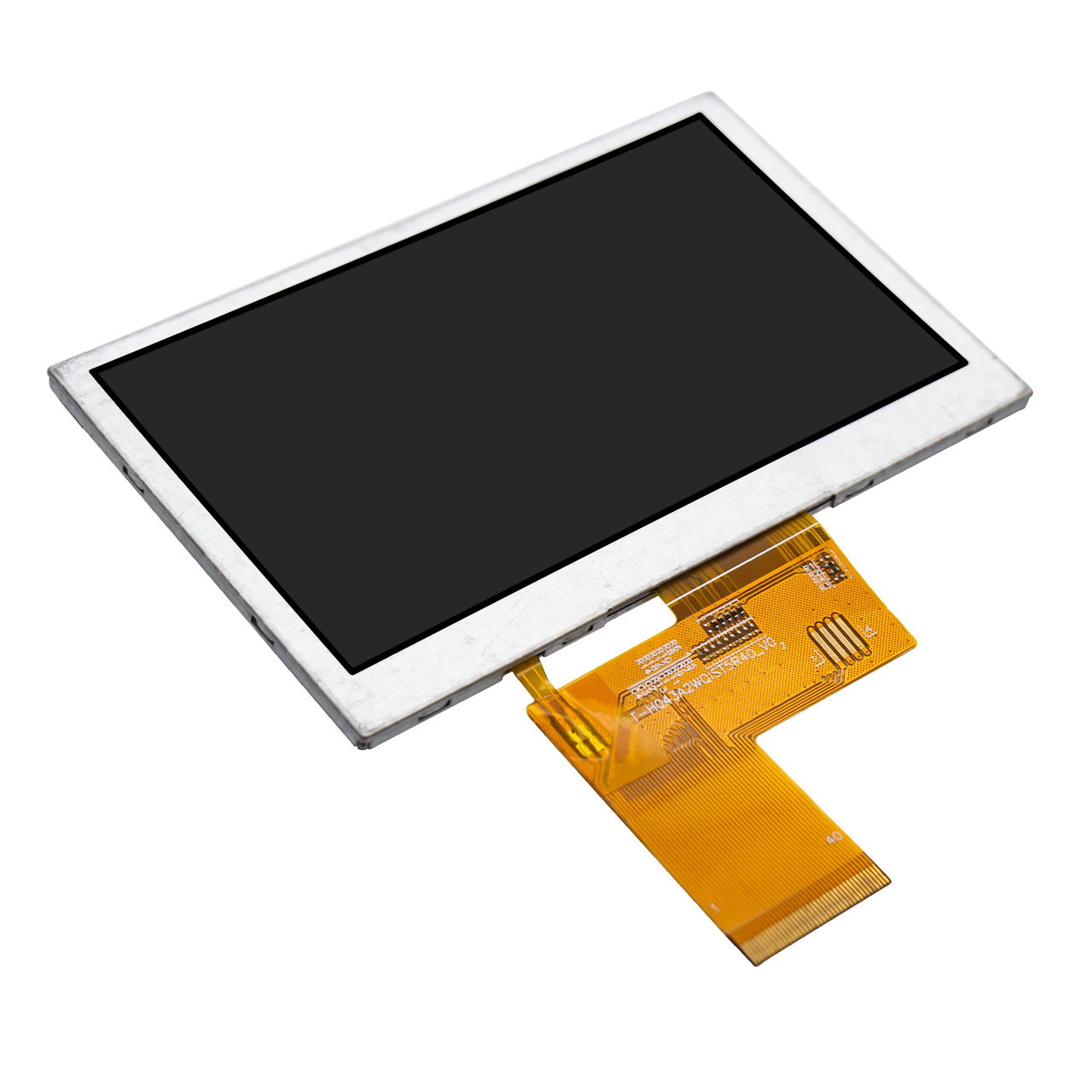

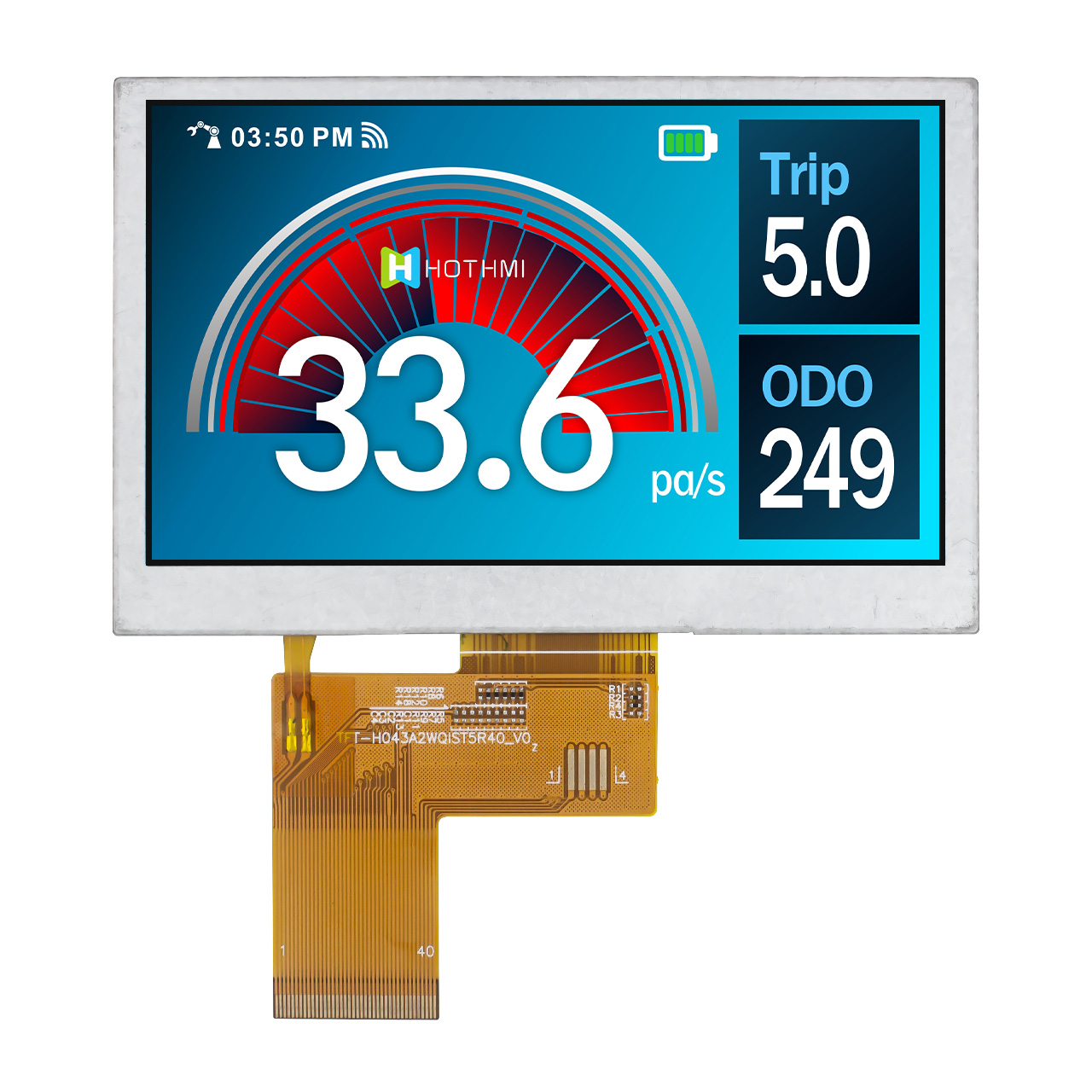

The TFT-H043A2WQISTKN40 is a 4.3-inch TFT LCD display module equipped with the SC7283 controller. This module features a 480x272 pixel resolution and offers a typical ultra-high brightness of 1200 nits, providing crisp, clear display in any environment. Its exceptional brightness ensures clear reading in both bright sunlight and dark conditions, making it suitable for a variety of applications requiring touchscreen displays, particularly industrial control system display devices.

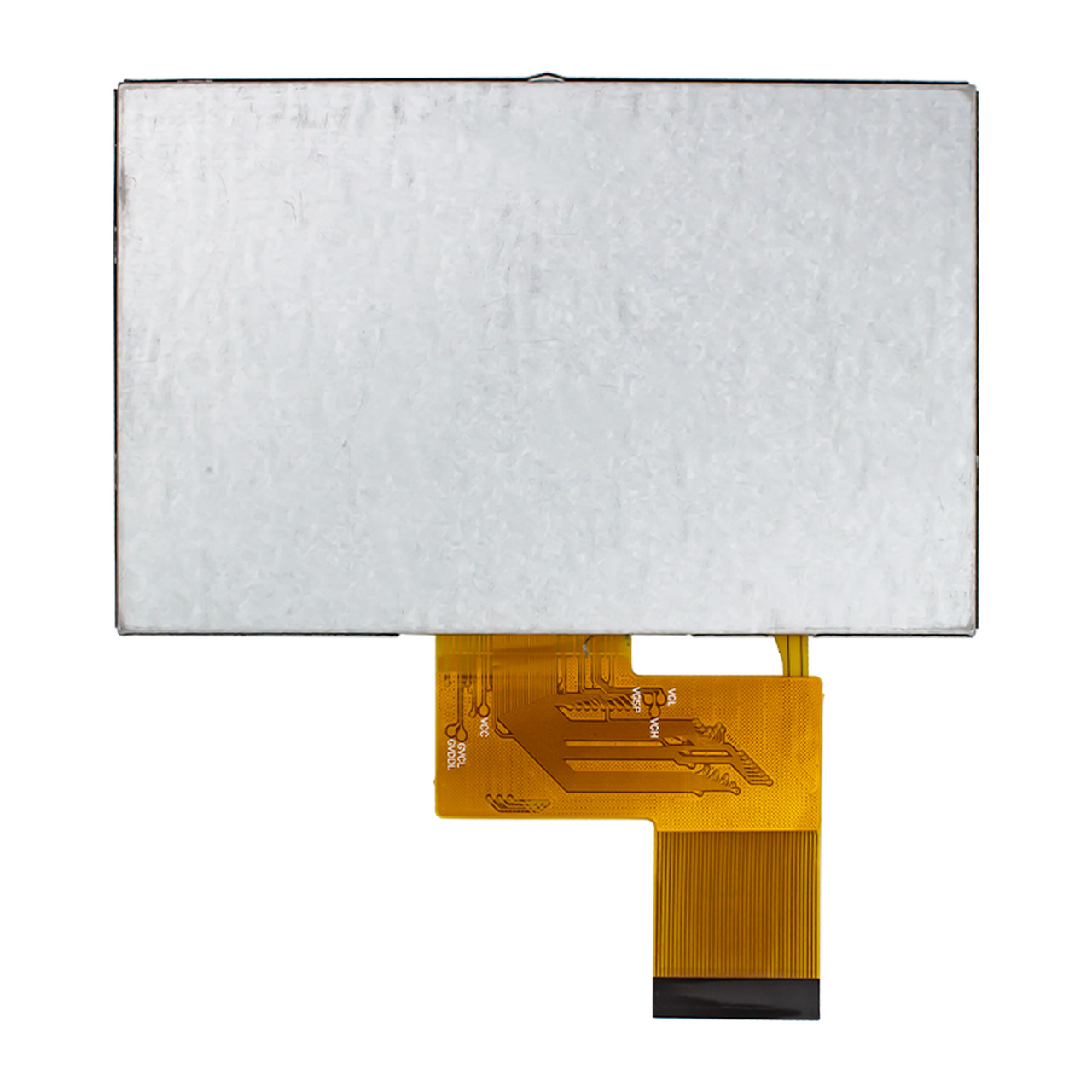

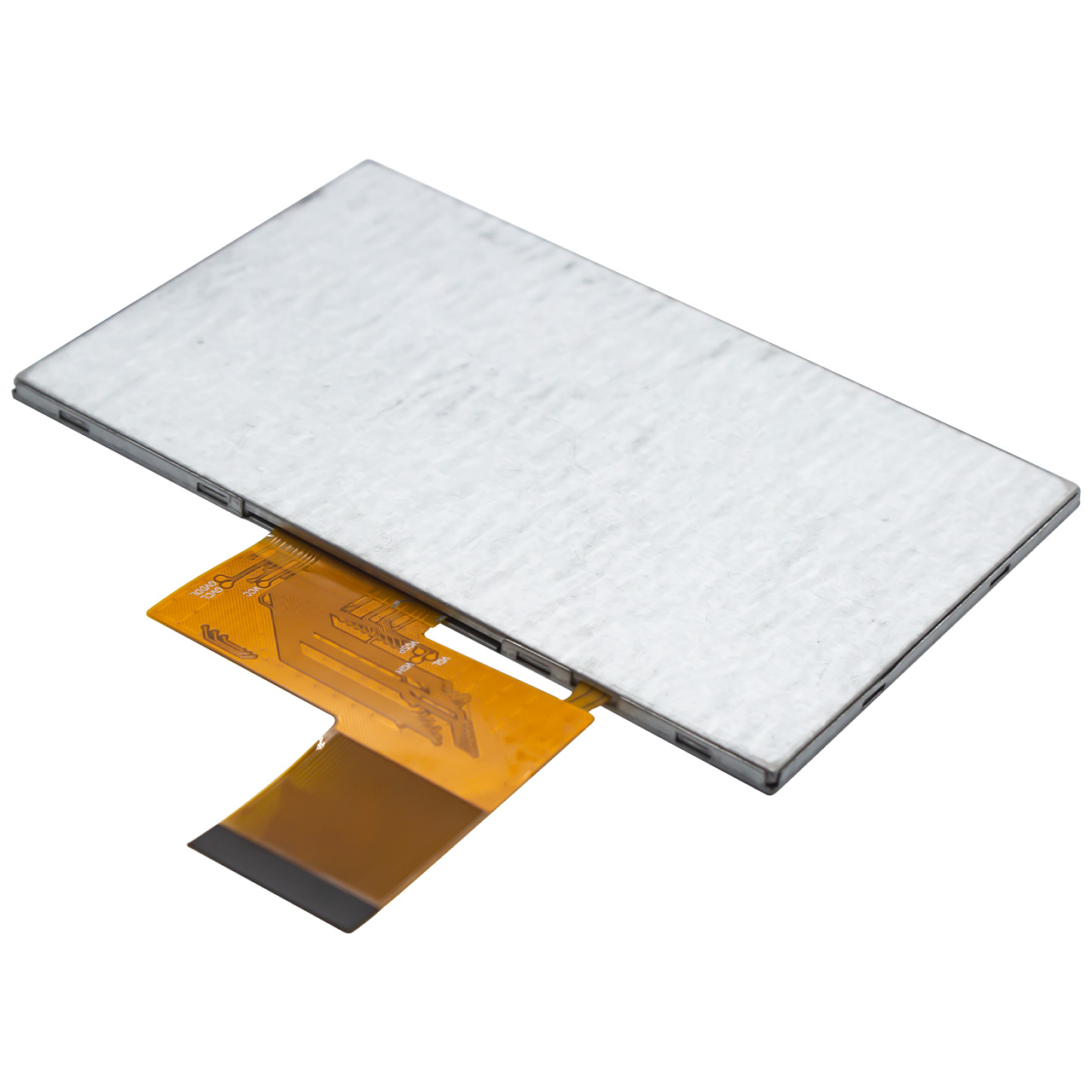

This module uses the SC7283 controller and utilizes a 40-pin FPC connector, allowing for easy assembly and disassembly between the display and driver board. The metal housing provides a stable and reliable structure for this TFT module. Its thin and lightweight design offers numerous design possibilities for structural engineers. Overall, the TFT-H043A2WQISTKN40 is a high-performance TFT display tailored for embedded systems, offering an excellent visual experience and reliability, making it an ideal choice for projects such as STM32 or RK.

We also offer the HTM-H043A10-MIPI-A06, a 4.3-inch MIPI TFT module with a driver board, or the HTM-TFT043C03-LVDS, a 4.3-inch TFT module with an LVDS interface. Our displays are RoHS-compliant and adhere to strict environmental and safety standards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H043A2WQISTKN40	December 12, 2024	1.80MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

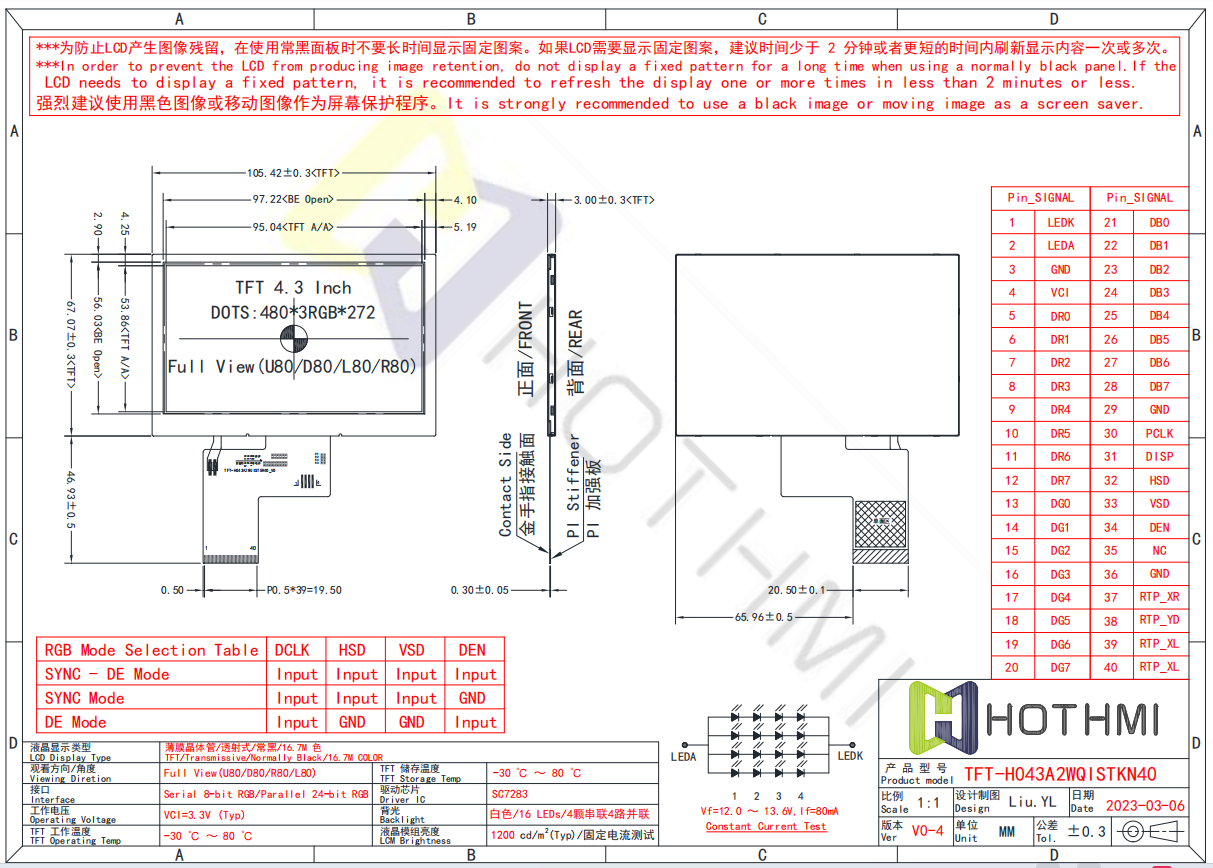

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043A2WQISTKN40
Diagonal size	4.3”	Inch
Resolution	480x272	Dot
Dimensions	105.42x 67.07x3.0	mm
Active area (AA)	95.04x53.86	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	SC7283
Brightness	1200cd/m2	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-30~80℃	℃
