10.1 inch Color TFT LCD Screen | 1280x800 LVDS Optical Bonding Sunlight Readable Display

10.1 inch Color TFT LCD Screen | 1280x800 LVDS Optical Bonding Sunlight Readable Display

▶ Model: TFT-H101A10WXIFTKN40

▶ Type: 10.1 inch Color TFT LCD Screen
▶ Display pixels: 1280x800
▶ Dimensions (mm): 229.1x148.9x4.35
▶ Display inches: 10.1"
▶ Effective size (mm): 216.96x135.6
▶ Application: micro instruments, mini home appliances
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 1000cd/m2
▶ Pin: FPC-40PIN
▶ Interface: LVDS
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: EK79202B1

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-C driver board/MIPI/LVDS/RGB (800*480 or above)
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board

Product Description
Specification
Attributes

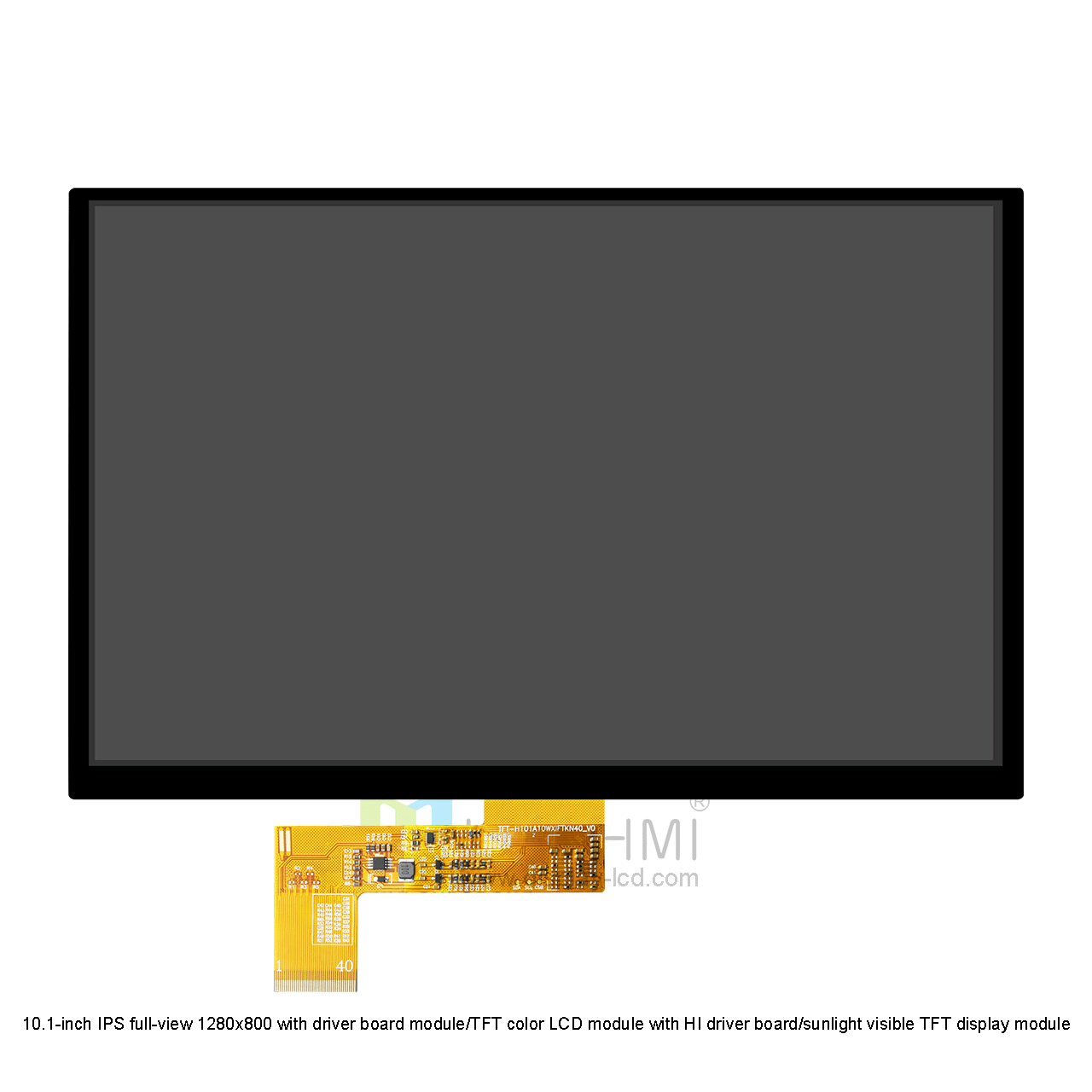

10.1 inch Color TFT LCD Screen | 1280x800 LVDS Optical Bonding Sunlight Readable Display
This 10.1 inch Color TFT LCD Screen has high brightness (1000 nits), a resolution of 1280x800, Optical Bonding，and a full-color IPS viewing angle, so you will have a good picture no matter which direction you look at it. It is ideal for a variety of applications. This display can be used in direct sunlight, indoor lighting or dark environments. It can be mounted above, at eye level or below eye level without color inversion.

This 10.1 inch Color TFT LCD Screen does not include a touch screen, but we can also provide a version with touch function. While this transmissive LCD does not feature a touchscreen, its large display size, 3.3V low voltage power supply, and impressive display quality make it a great choice for projects that require visual output without touch functionality. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, handheld devices, and they are great for DIY or prototyping projects due to their compatibility with Linux/RK boards/. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

10.1 inch Color TFT LCD Screen Main features:
- IPS (viewable in all directions)
- Using EK79202B1 controller
- Low voltage power supply
- Configurable touch function
- Optical Bonding

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H101A10WXIFTKN40	December 12, 2024	973.45KB

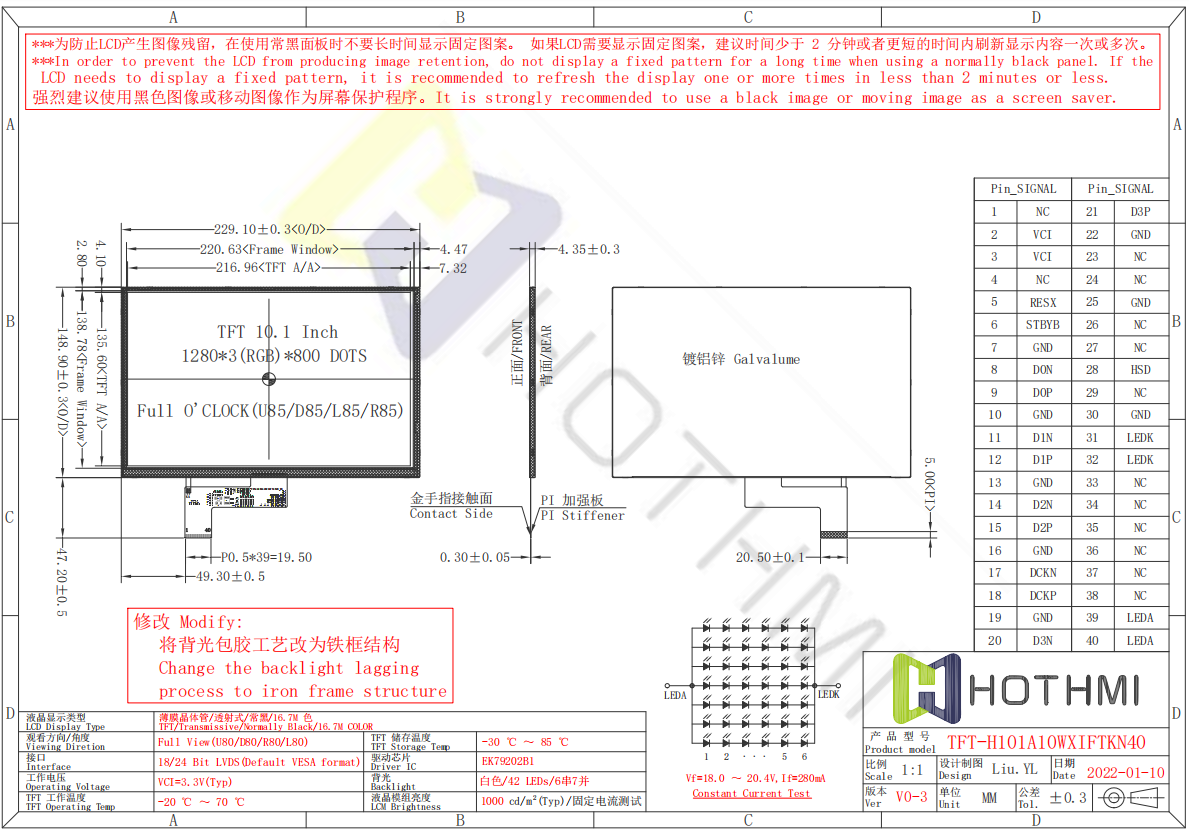

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H101A10WXIFTKN40
Diagonal size	10.1”	Inch
Resolution	1280x800	Dot
Dimensions	229.1x148.9x4.35	mm
Active area (AA)	216.96x135.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:1
Backlight type	LED white
TFT driver IC	EK79202B1
Brightness	1000	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~85℃	℃
